Powerstroke-Products:

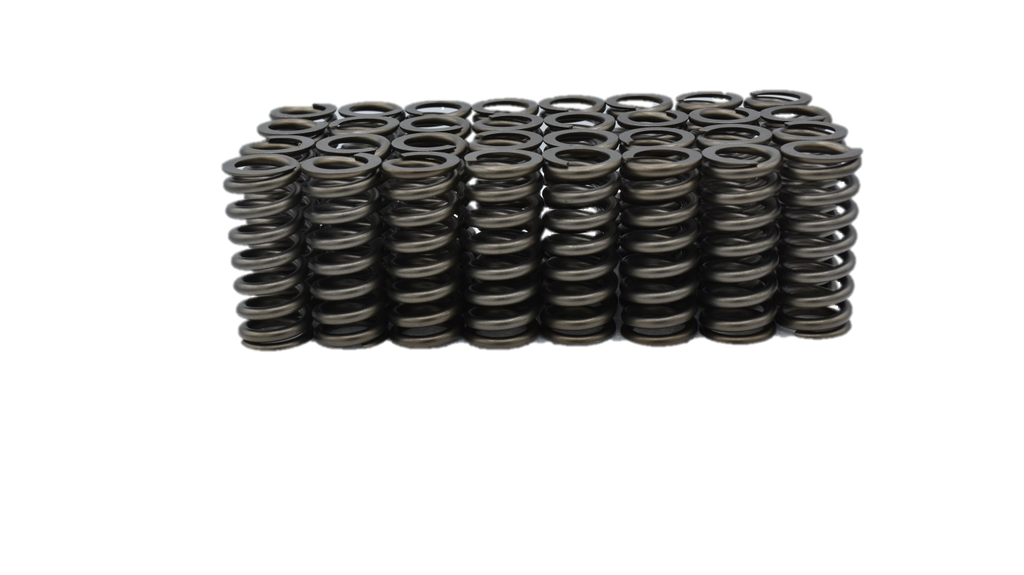

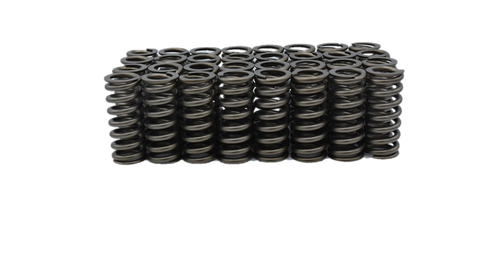

100# Valve springs help to control the valve at higher boost and RPM. Also keeps the lifter in contact with the cam at all times.
Springs are 102# @ 1.840 installed height Lift Pressure in LBS
wire size is .150 Seat 102.00
free length 2.245 0.100 128.50
OD is .950 ID is .640 0.200 154.50
Coil Bind is @1.281 0.300 183.00
0.400 215.00
0.500 246.00
